3D & SimulationCloners

Grid Cloner

A 3D array with grid, honeycomb, checkerboard, and brick patterns, plus a random octree subdivision.

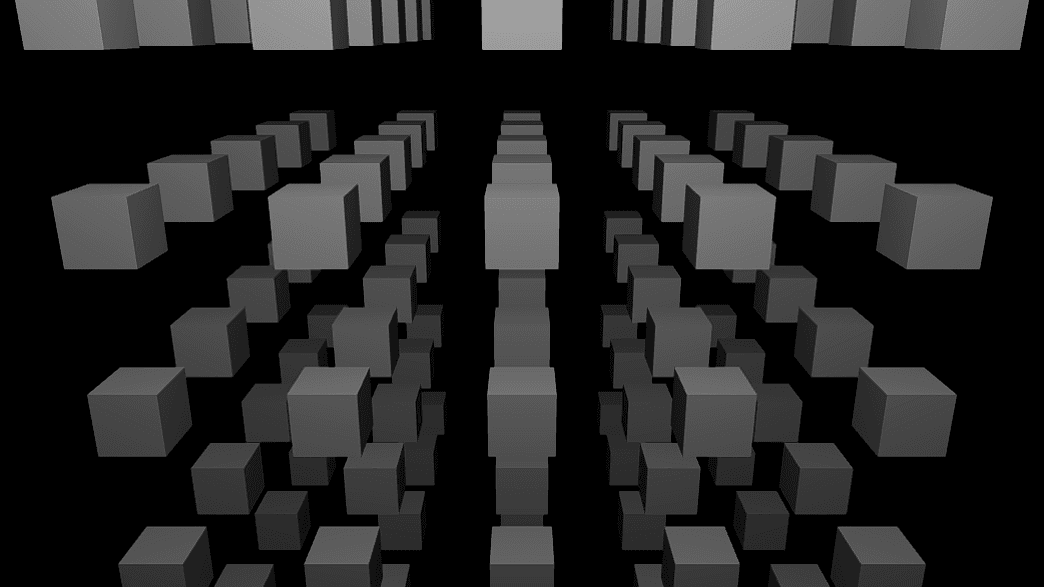

The Grid Cloner fills a box with clones. Pattern shifts rows into honeycombs or bricks, and Random Subdivide splits cells into smaller ones.

Grid Cloner

  • Count X / Y / Z and Size X / Y / Z
  • Pattern and Stagger
  • Random Subdivide with levels, amount, seed, gap, and spread
  • Found in the node graph under Cloners → Cloners

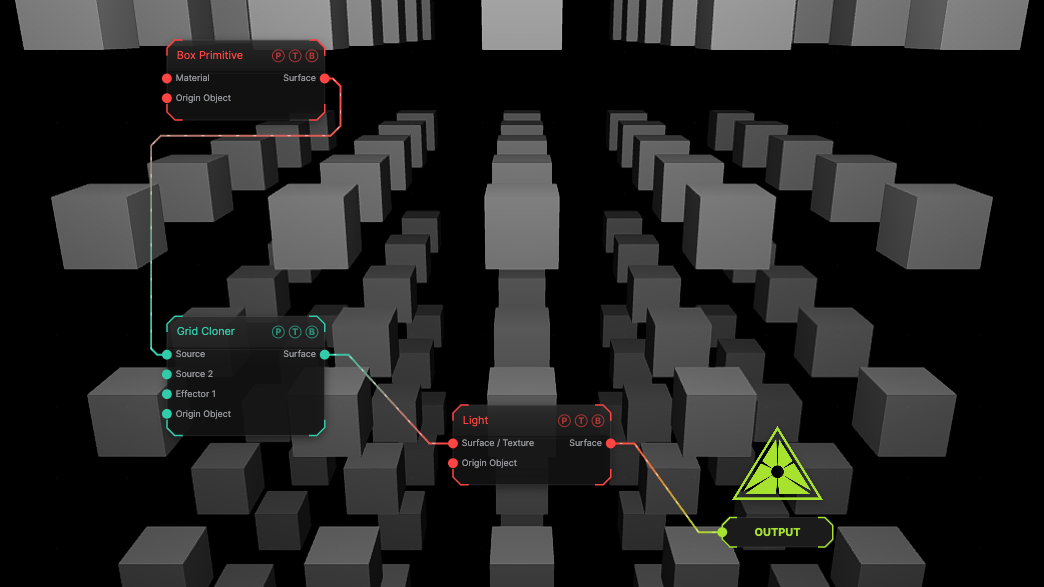

Example patch — drag onto the app to load

The image on the right is the example patch itself. Drag and drop it onto the app, or load it with File → Load, to open the full graph. The default 5×5×5 array of small boxes.

Inputs and outputs

Grid Cloner node

PortTypePurpose
SourceSurfaceThe geometry to repeat. A texture here makes billboard quads.
Effector 1 … 4EffectorCloner effectors; the four ports concatenate.
Origin ObjectSurfaceA Null to parent the array to.
SurfaceSurfaceThe array.

Parameters

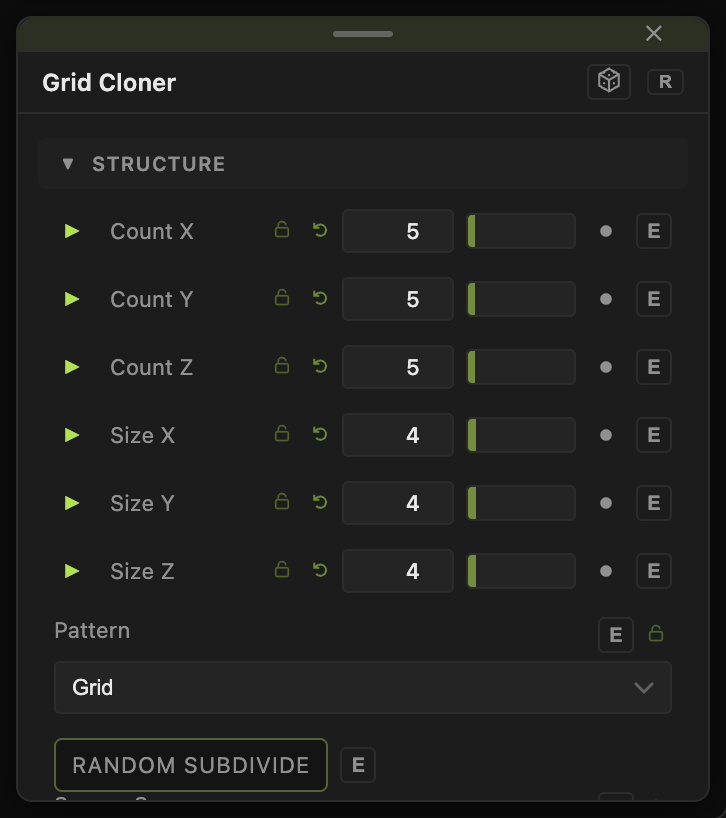

Grid Cloner parameters
  • Count X / Y / Z (1–64, default 5), Size X / Y / Z (0–50, default 4).
  • Pattern — Grid (default), Honeycomb (XZ floor), Honeycomb (XY wall), Checkerboard, Brick. Stagger X / Z (−1 to 1, default 0).
  • Random Subdivide (default off) with Subdivide Levels (0–4, default 1), Subdivide Amount (0–1, default 0.35), Subdivide Seed, Iteration Factor (0–4, default 1), Iterated Gap (0–0.5, default 0.15), Iterated Spread (−1 to 1, default 0).

Per-clone block

  • Source Sequence — with several sources wired: Cycle (round-robin) (default), Blocks (even split), Random, Per Row, Per Column.
  • Clone Scale X / Y / Z and Clone Uniform Scale (0.01–10, default 1), Clone Rotate Heading / Pitch / Roll (default 0).
  • Billboards Face Camera (default on) — for texture sources.
  • Position X / Y / Z, Rotate Heading / Pitch / Roll, Scale X / Y / Z, Uniform Scale — the array's own transform.

Every slider has a per-parameter animation bar, so it can be animated, audio driven, or MIDI mapped.

Examples

City — Count Y 1, Random Subdivide on, a Randomise Effector on Scale Y ±.

Troubleshooting

The frame rate drops — 64³ is 262144 clones. Lower the counts or use a Point Geometry Renderer with particles instead.

Related

Realize

Bake the array to one mesh.

Radial Cloner

Around a circle.

Linear Cloner

Clones marched along a step vector, with an optional scale change per step.

Radial Cloner

Clones swept around a circle between a start and an end angle, in a chosen plane.
