Color Ramp Effector

Colours clones from a gradient driven by index, position, distance, or random, and can offset or scale by the ramp too.

The Color Ramp Effector paints the array with a gradient. A wired Gradient texture overrides the built-in editor.

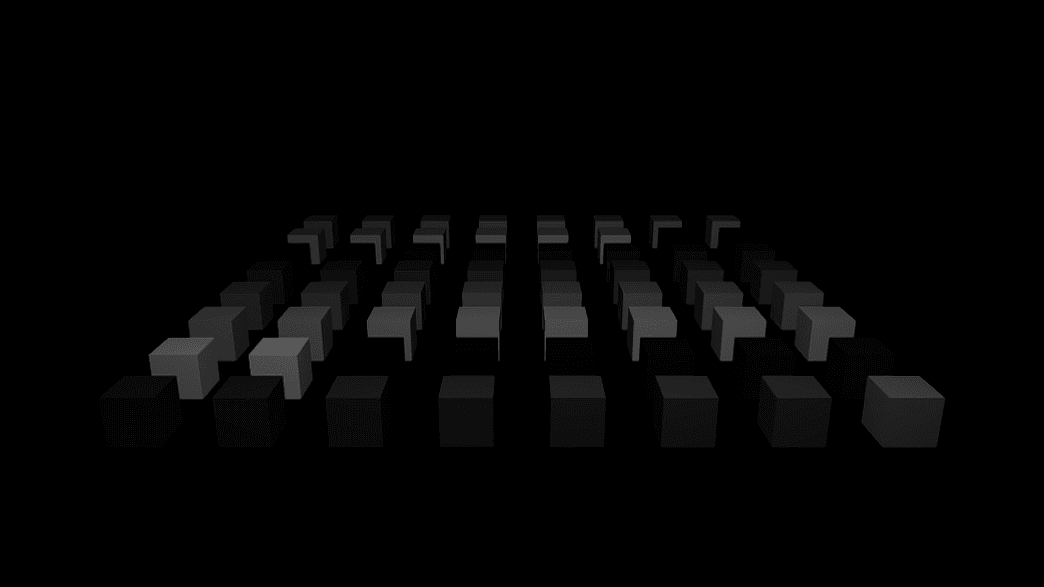

Color Ramp Effector

  • Drive By, Cycles, Ramp Offset, Wrap
  • Blend Mode and Color Blend
  • Optional Offset (Ramp) and Scale (Ramp)
  • Found in the node graph under Cloners → Effectors

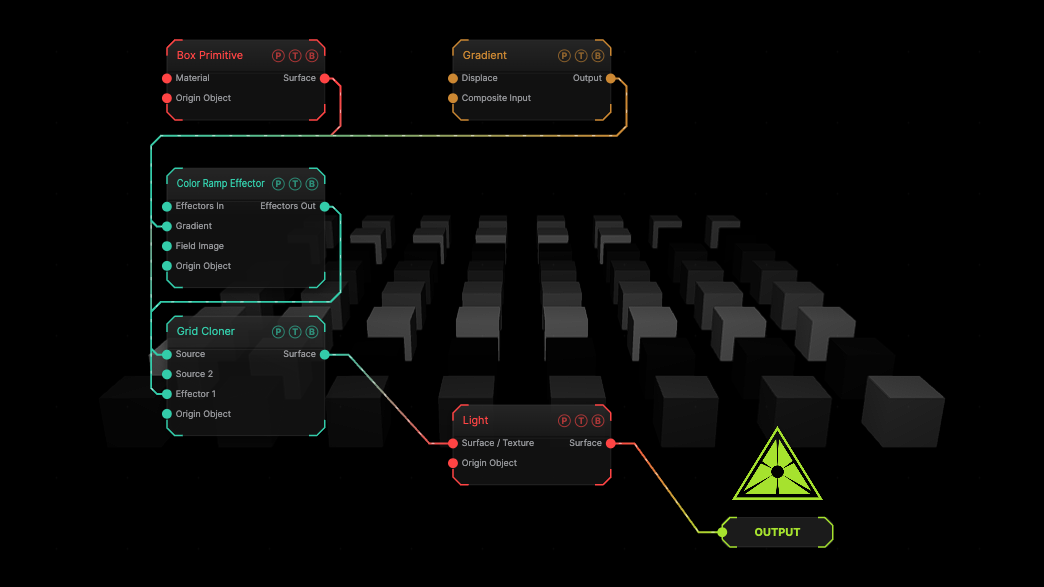

Example patch — drag onto the app to load

The image on the right is the example patch itself. Drag and drop it onto the app, or load it with File → Load, to open the full graph. A Gradient generator wired into the Gradient port.

Inputs and outputs

Color Ramp Effector node

PortTypePurpose
Effectors InEffectorThe previous effector in the chain.
GradientTextureOverrides the built-in gradient.
Field ImageTextureA texture read by the Image field shape.
Origin ObjectSurfaceA Null to parent to.
Effectors OutEffectorWire into the next effector or a cloner's Effector port.

Parameters

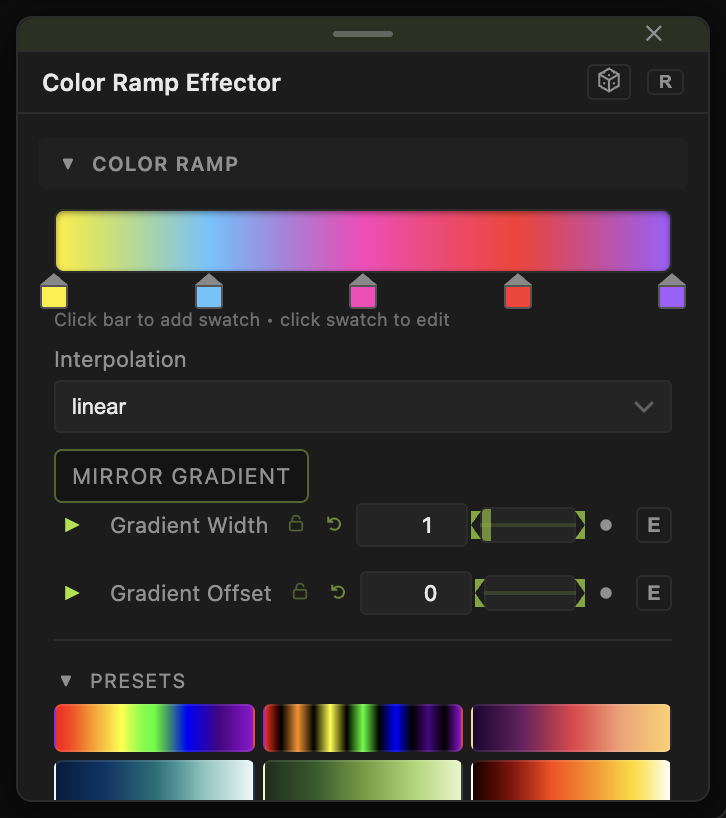

Color Ramp Effector parameters
  • Drive By — Clone Index (default), Position X / Y / Z, Distance, Random.
  • Cycles (0.1–32, default 1), Ramp Offset (0–1, default 0), Wrap (Repeat default, Clamp, Mirror), Interpolation (Linear, Smooth, Step).
  • Blend Mode — Multiply (default), Replace, Add, Screen, Overlay. Color Blend (0–1, default 1).
  • Offset X / Y / Z (Ramp) and Scale X / Y / Z (Ramp), Uniform Scale (Ramp) — move or scale by the ramp value.

Field and clamp

  • Field (default off), Field Shape, Field Size, Falloff, Inner Radius, Invert Field, Field Follows Mouse, Image Channel, and the Field Position / Heading / Pitch / Roll / Scale block limit where the effector acts.
  • Clamp (default off) with Max Offset (default 5), Max Rotation (default 180), Min Scale (default 0), Max Scale (default 4).
  • Highlight Field and Highlight Color draw the field in the viewport.

Every slider has a per-parameter animation bar, so it can be animated, audio driven, or MIDI mapped.

Examples

Rainbow rows — Drive By Position X, Cycles 2.

Troubleshooting

No colour — the clone material must not override colour. Use a Material with Use Vertex Color on, or none.

Related

Texture Colorizer Effector

A texture row as the ramp.

Kill Box Effector

Removes clones inside a region defined by the field block.

Texture Colorizer Effector

Samples one row of a wired texture as the colour ramp for the clones.
